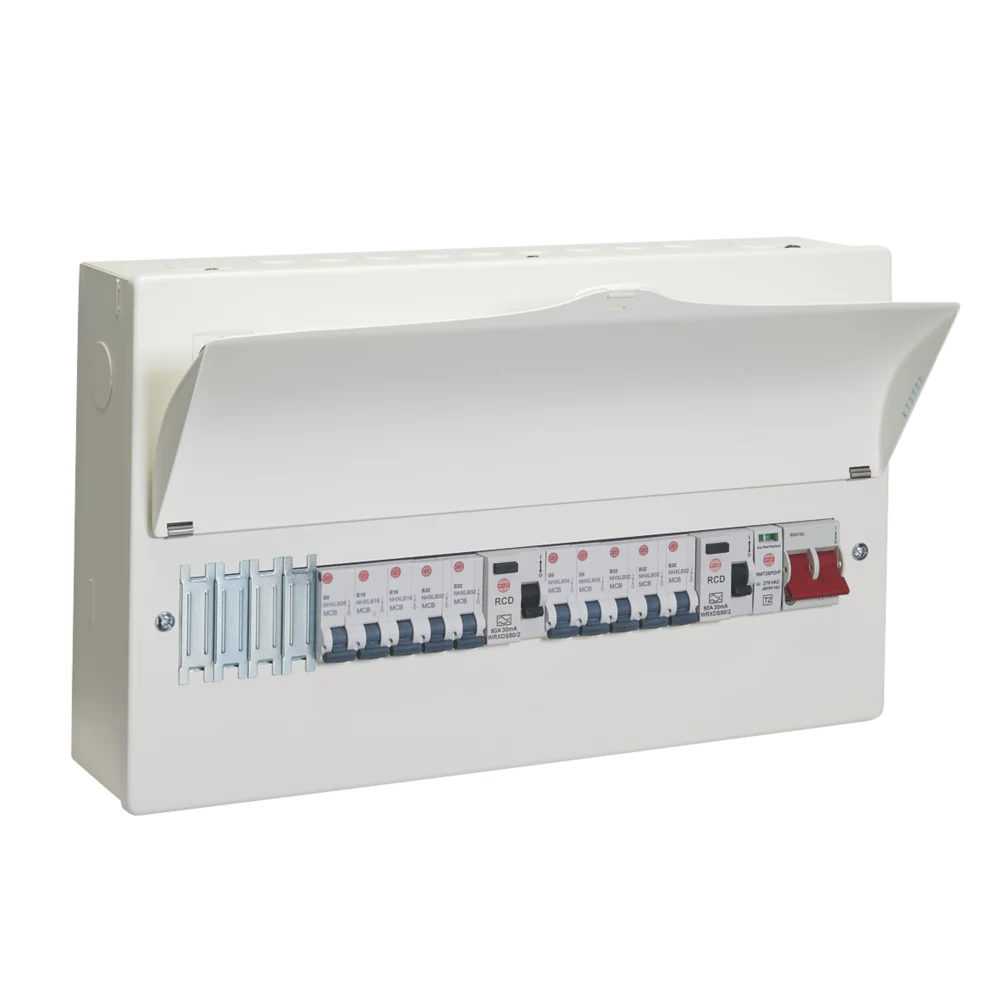

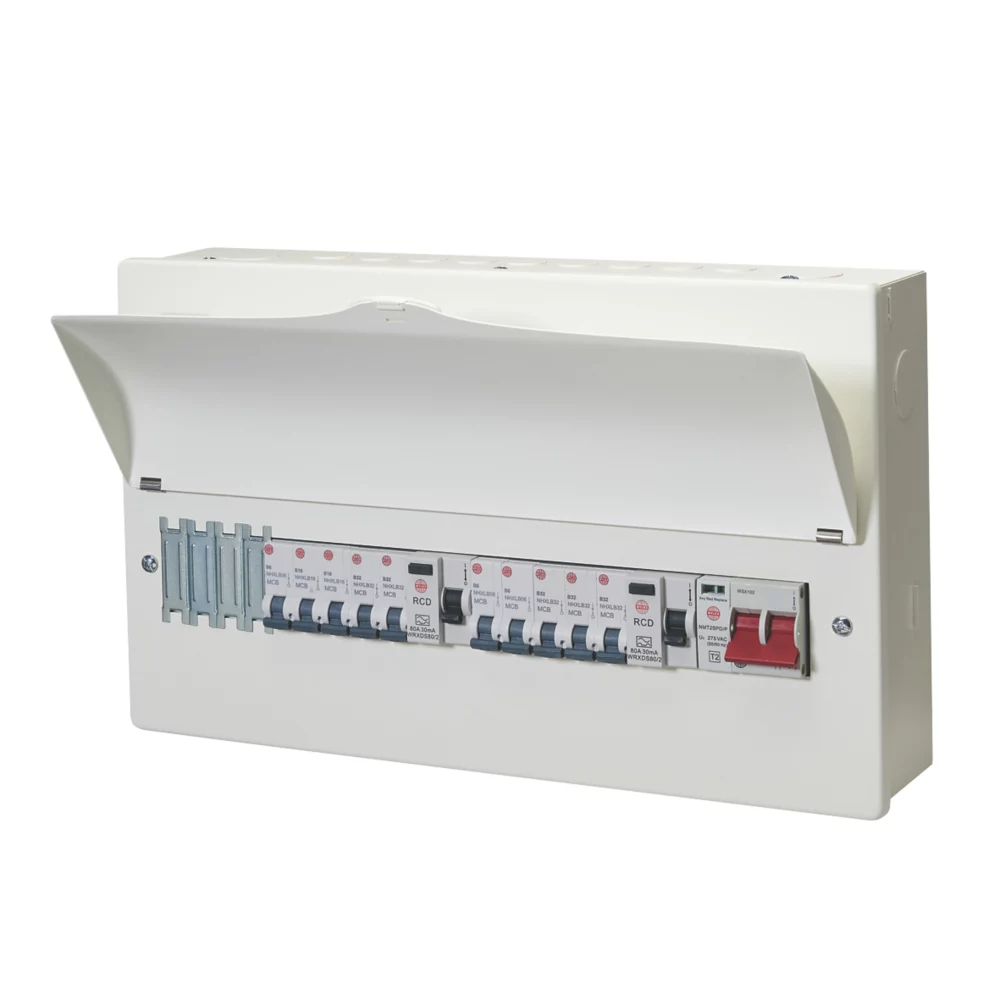

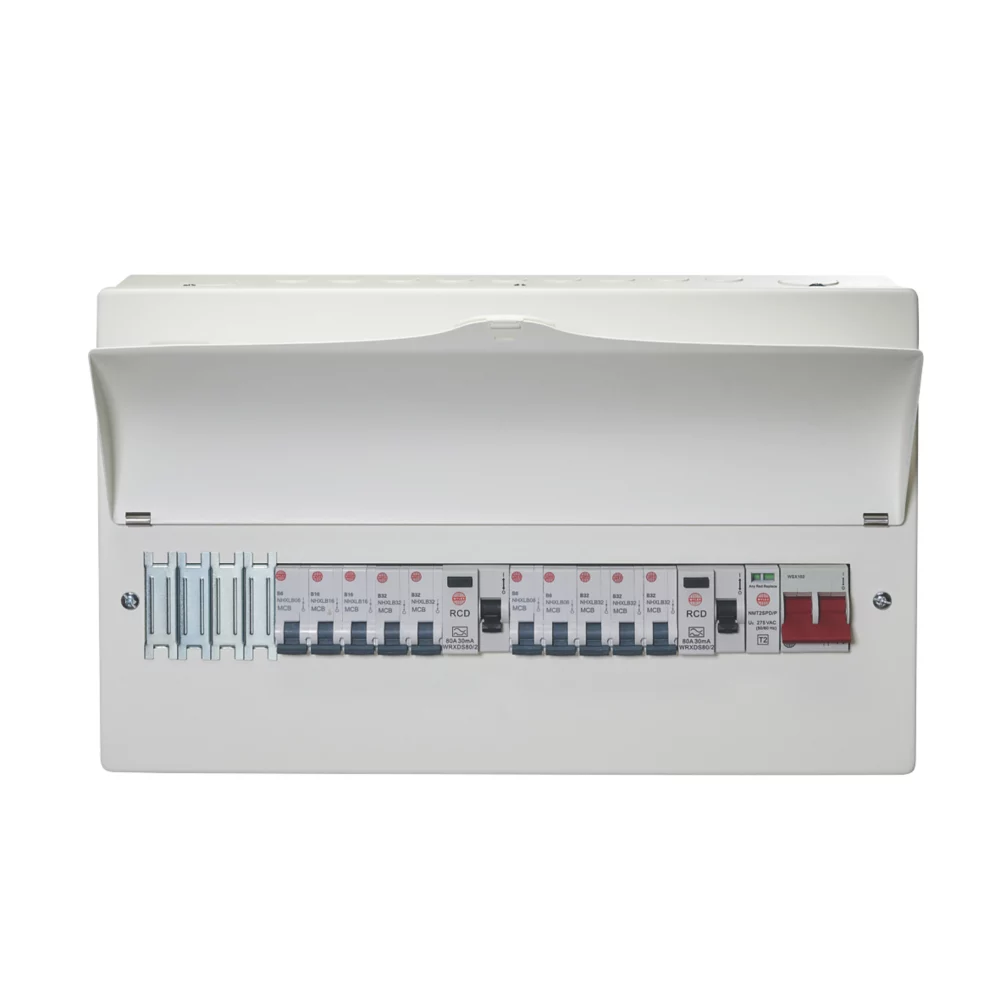

Wylex 21-Module 14-Way Populated High Integrity Main Switch Consumer Unit With SPD
£96.99
- Shop with confidence, enjoy free returns.
- Get the Best for Less
- Shop with Confidence
- Streamlined service, designed for your convenience.
18th Edition Amendment 2. Flexible configuration. 100A main switch and factory fitted surge protection device (pre-wired and connected). Curved visor with temporary locking facility.
- 40kA Type 2 SPD
- 100A Mains Switch
- 2 x Type A 80A 30mA RCDs
- 10 x Type B MCBs (3 x 6A, 2 x 16A & 5 x 32A)
- 4 Blanks

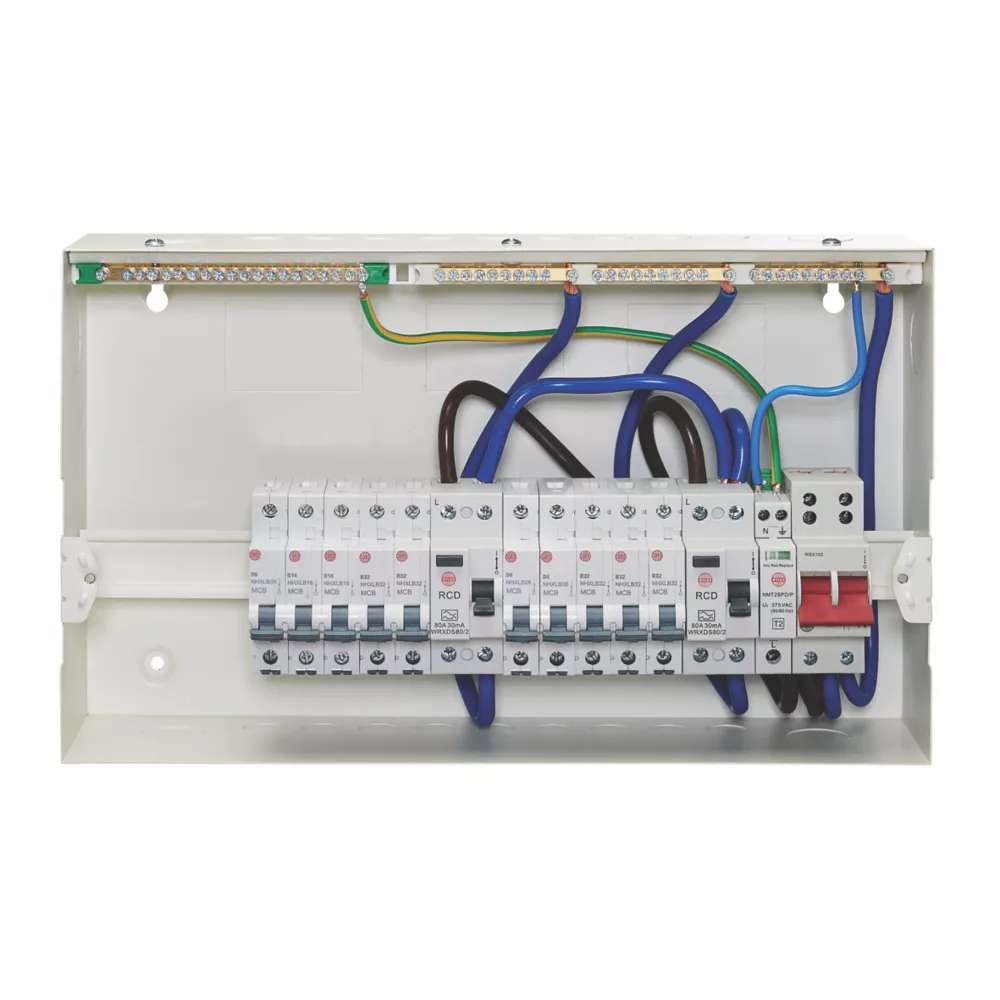

- Flexible Busbar
- DIN Rail Supplied
- Top Left, Bottom Left & Rear Cable Entry Points
- Low Smoke & Fume Paint
| Brand | Wylex |
|---|---|
| CSU Populated/Unpopulated | Populated |
| Cable Entry Points | Top Left, Bottom Left & Rear |
| Construction Material (Electrical) | Metal |
| Consumer Unit Type | Main Switch |
| Current Rating | 80 A |
| Fixings Supplied | Fixings & Fittings Not Supplied |
| IP Rating | IP2X |
| Integrity | High Integrity |
| MCBs Supplied | MCB |
| Manufacturer Guarantee | 1 Year Guarantee |
| Model No | GB6:SFNM14HIBU10S1 |
| No. of MCBs Supplied | 10 x Type B MCBs (3 x 6A, 2 x 16A & 5 x 32A) |
| No. of Populated Ways | 14 |
| No. of RCBOs Supplied | 0 x RCBOs |
| No. of RCDs Supplied | 2 x Type A 80A 30mA RCDs |
| No. of SPDs Supplied | 40kA Type 2 SPD |
| Pack Size | 1 |
| Pieces in Pack/Case | 1 |
| Power Voltage Supply | 230 V |
| Product Depth | 131 mm |
| Product Height | 276 mm |
| Product Type | 14W Metal Hi Int CU SPD, 10MCBs, 4Blanks |
| Product Width | 453 mm |
| RCBOs Supplied | No RCBOs Supplied |
| RCD Type | Type A |
| RCDs Supplied | RCD |
| SPDs Supplied | SPD |
| Total No. Module Spaces When Empty | 21 |
| Total Product Weight | 6.696 kg |
| Way | 14 Way |
