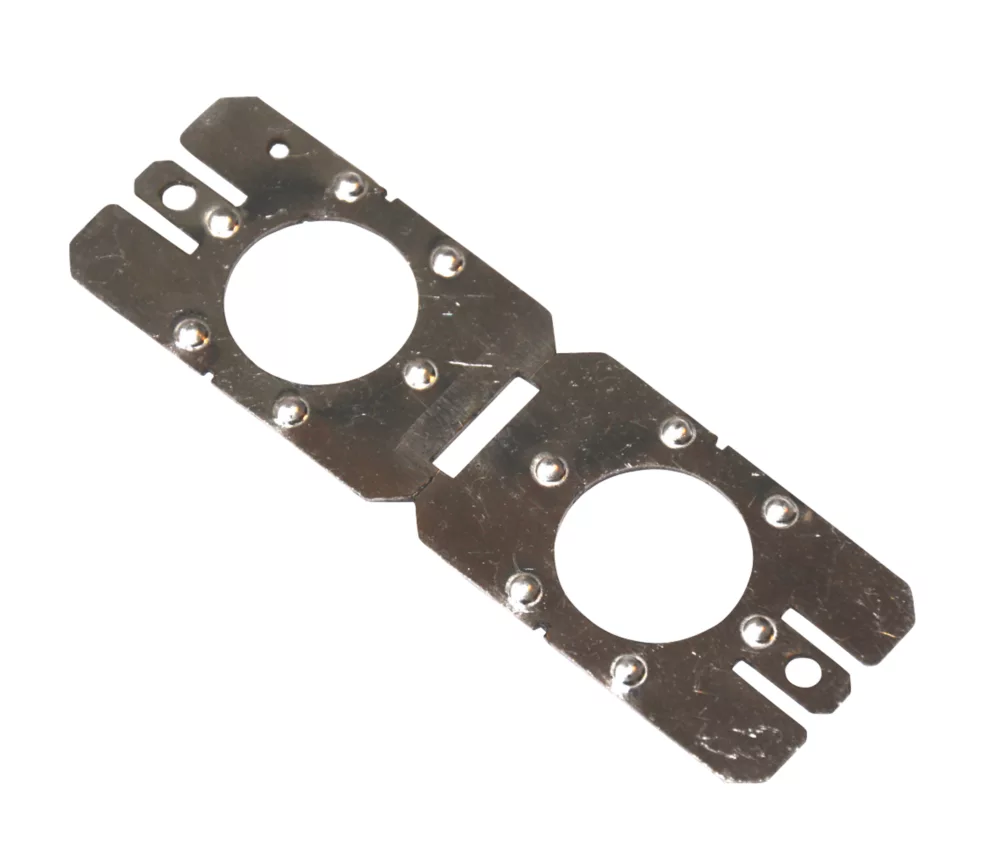

Wago Capsule Side-Panel Earthing Plate

When installing armoured cable the armouring will need to be earthed and may also be used as the Circuit Protective Conductor (CPC1). When used in conjunction with a capsule, armoured cable requires the use of lid or side-panel earth plates to ensure earth continuity. Manufactured from 0.8mm stainless steel these plates fit inside the Wago Capsule and can bond 2 M20 SWA cable glands. The plate also has a fitted 3.7mm Blue Ring crimp connector with earth cable. The plate can also be snapped into 2 single gland plates that each have a single 6.3mm crimp connection tab suitable for 3.7mm Blue Ring connector or 6.3mm push on spade connector.

• For use with the Wago Capsule
• Stainless Steel Construction
