Hylec 1DE.02.01AG-SF Double Pole Flush & Mushroom Head Push-Button Isolator Switch NO/NC
£16.43
- Shop with confidence, enjoy free returns.
- Get the Best for Less
- Shop with Confidence
- Streamlined service, designed for your convenience.

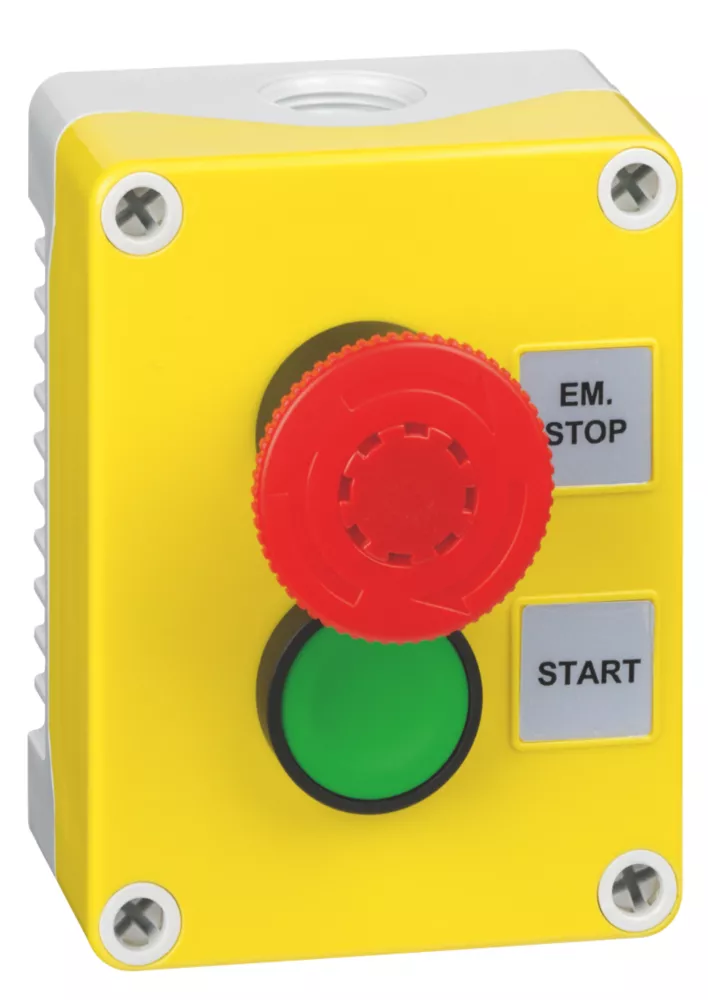

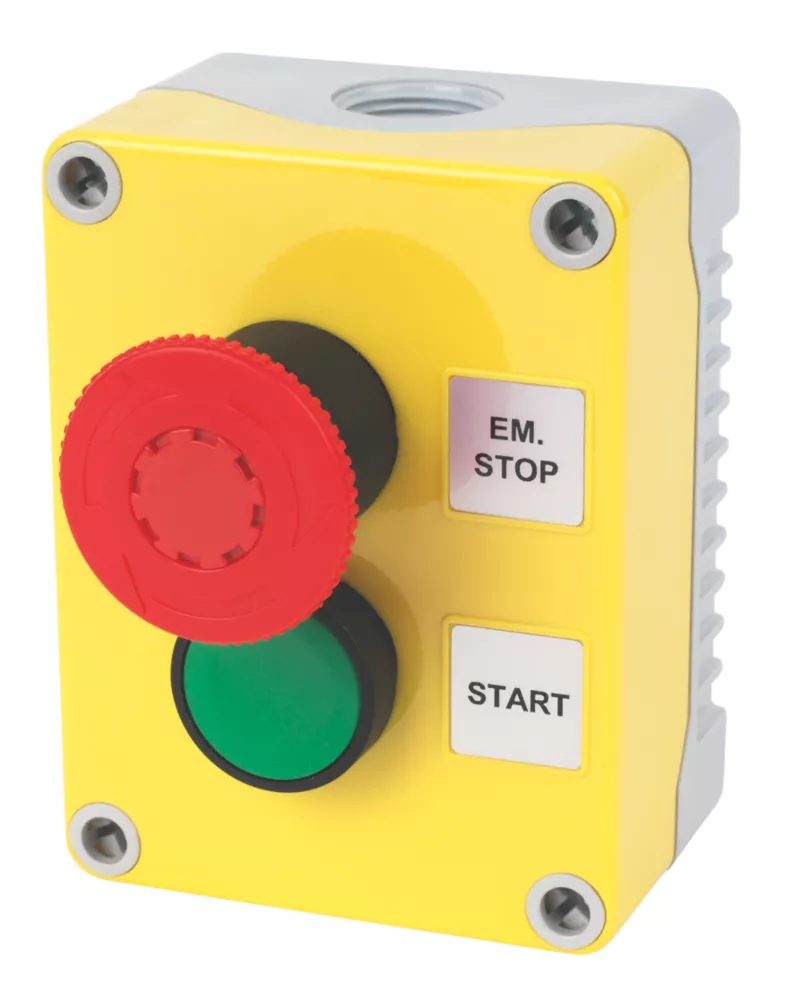

Red mushroom head, push-button control station with a flush, green reset button. Includes 1 normally open and 1 normally closed contact block, 2 x M20 threaded and 1 x M20 non-threaded cable entry knockouts.
- IP56
- Flame Retardant ABS UL94-HB Casing
- M20 Knockouts
- 1 x Normally Open & 1 x Normally Closed
| Brand | Hylec |
|---|---|
| Button Colour | Red & Green |
| Casing Colour | Yellow / Grey |
| Hertz (Hz) | 60 Hz |
| IK Rating | IK08 |
| IP Rating | IP56 |
| Knockout Size | M20 |
| Manufacturer Guarantee | 1 Year Guarantee |
| Model No | 1DE.02.01AG-SF |
| Number of Poles | Double Pole |
| Pack Size | 1 |
| Parent Colour | Yellow |
| Pieces in Pack/Case | 1 |
| Product Depth | 85 mm |
| Product Height | 105 mm |
| Product Type | Isolator Switch |
| Product Width | 80 mm |
| Rated Insulation Voltage (Ui) | 600 V AC |
| Rated Operational Current (In) | 10 A |
| Rated Operational Voltage (Ue) | 240 V AC |
| Switch Operation | Push-Button |
| Terminal Capacity | Terminals accept up to 4mm² cable |
| Utilisation Category | AC-12, AC-15 & DC-12 |
