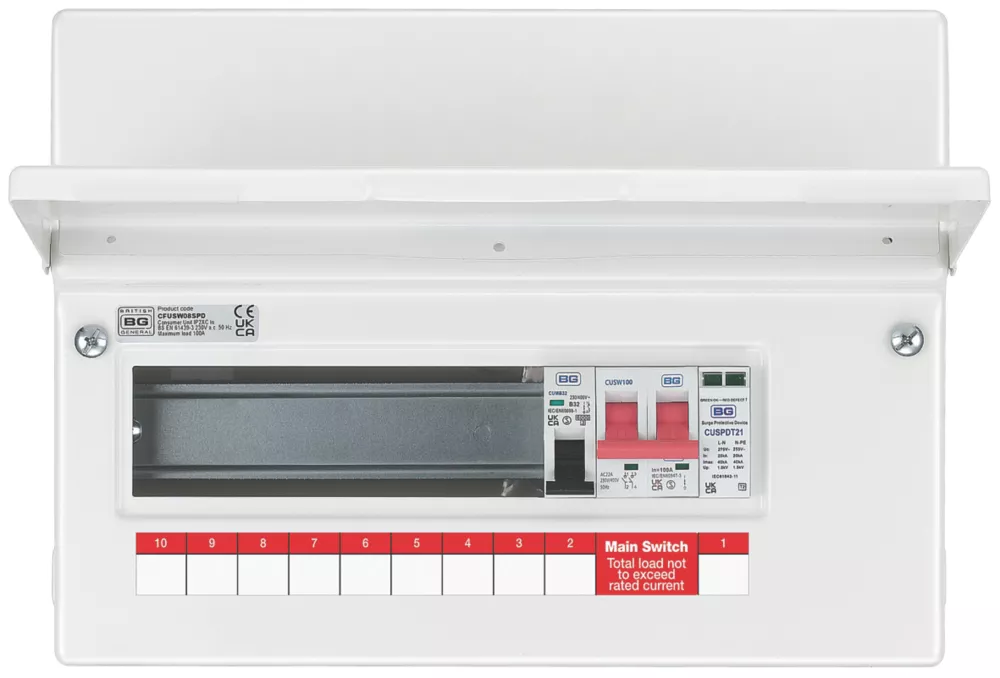

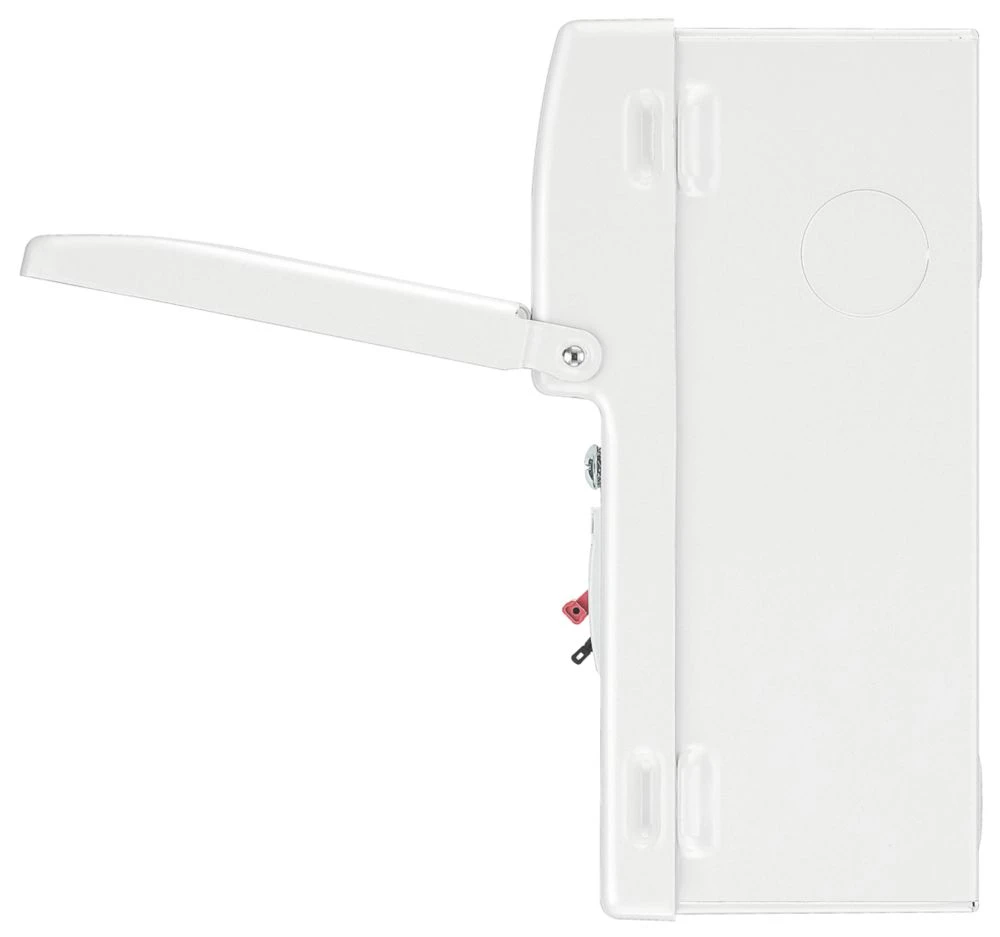

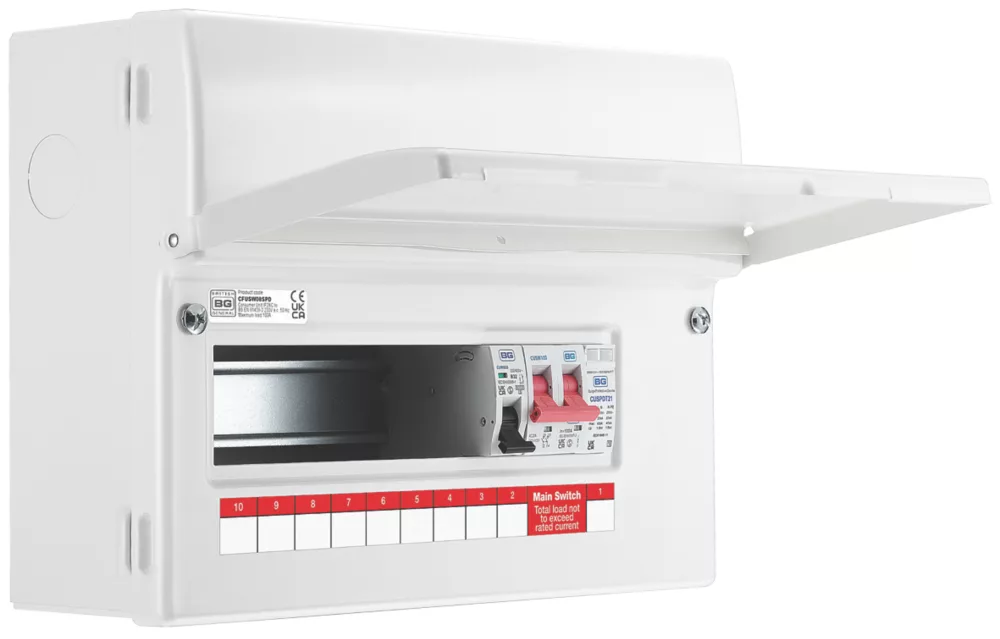

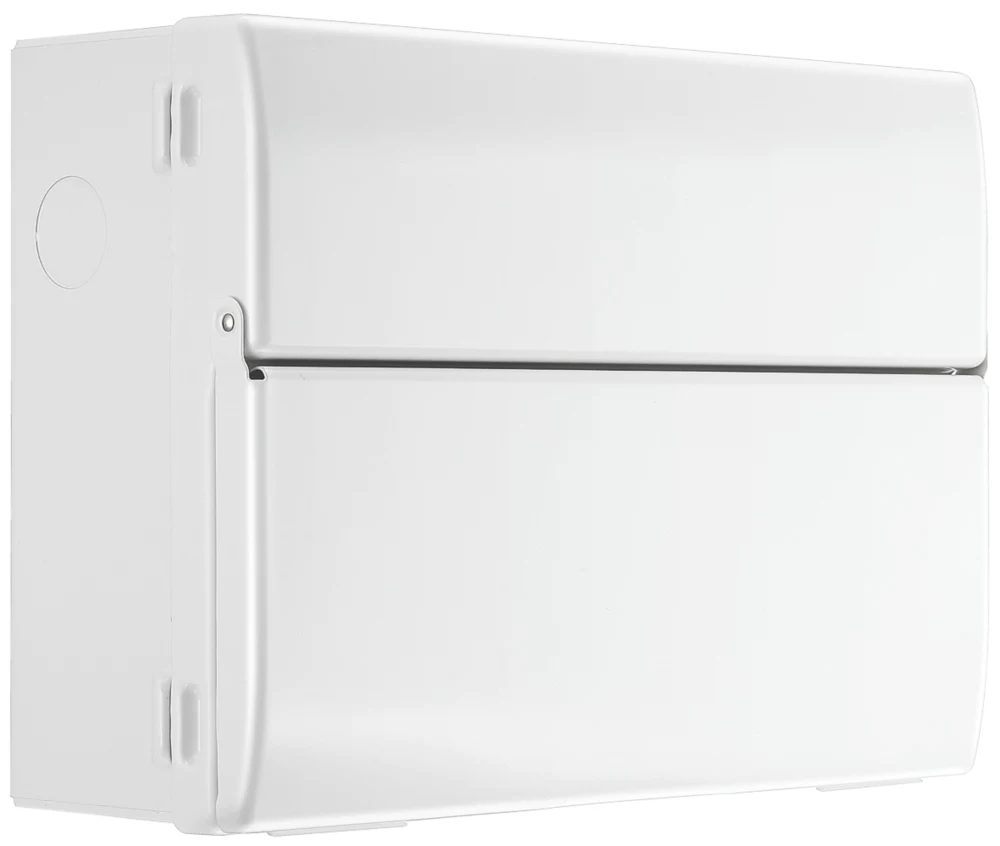

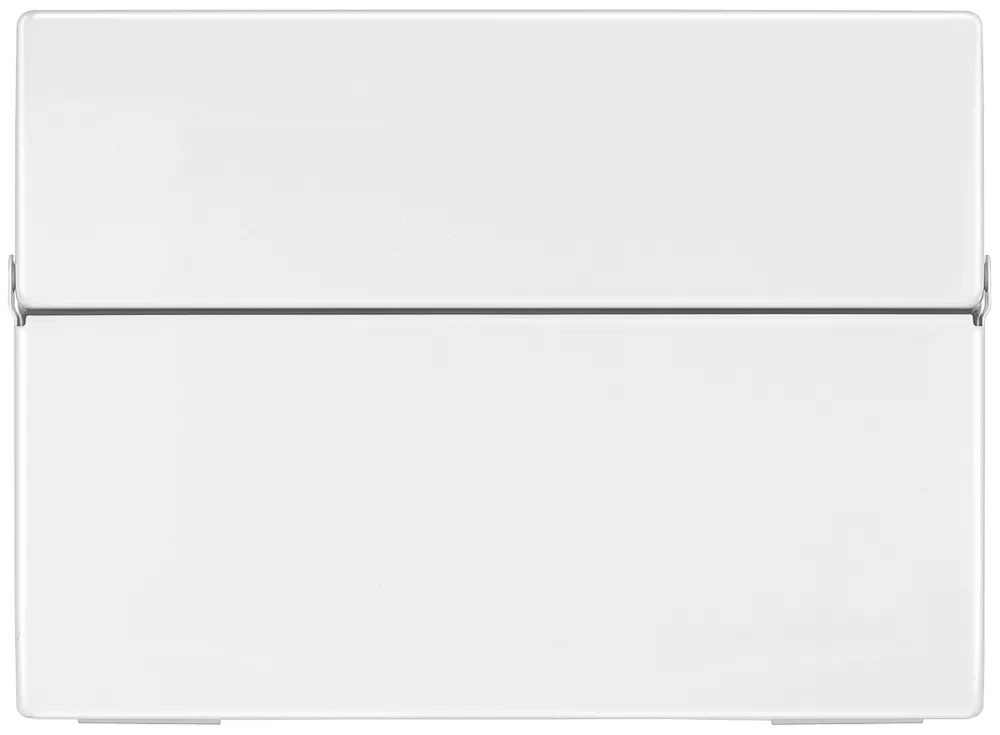

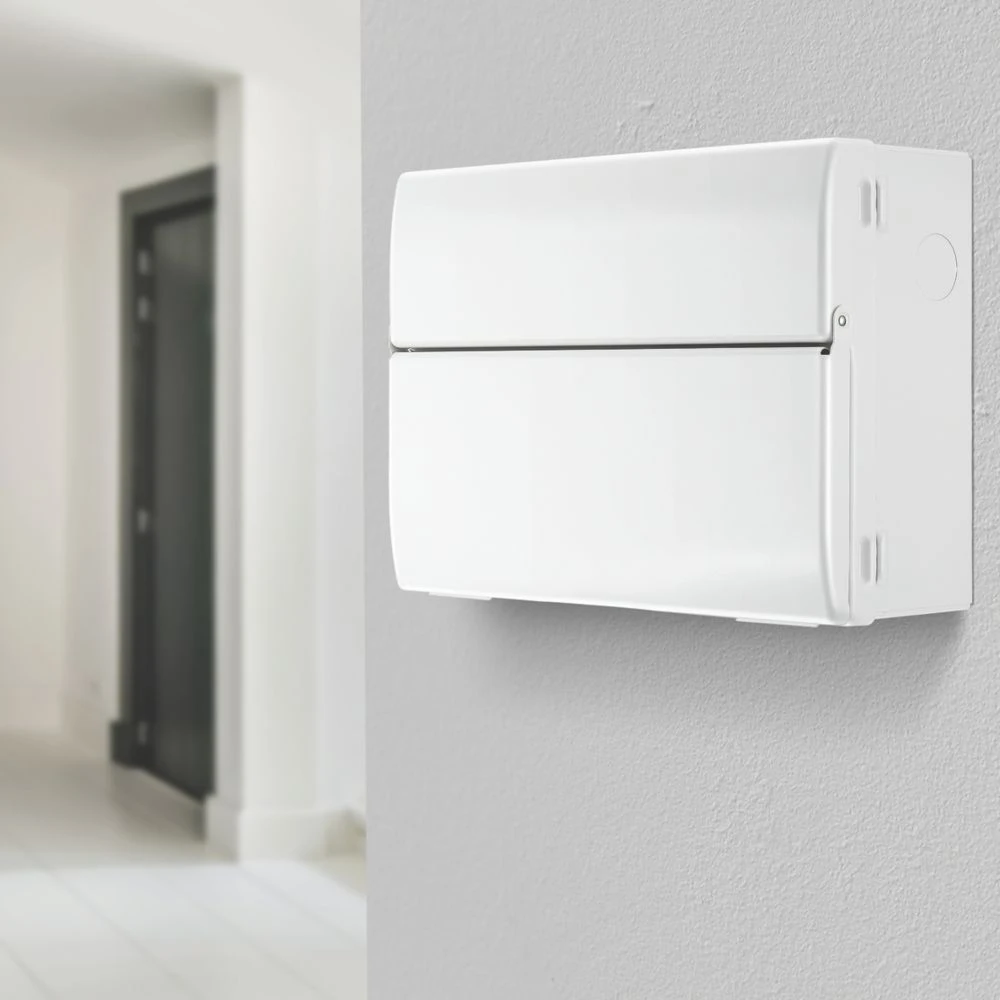

British General Fortress 12-Module 8-Way Part-Populated Main Switch Consumer Unit With SPD
£46.27
- Shop with confidence, enjoy free returns.
- Get the Best for Less
- Shop with Confidence
- Streamlined service, designed for your convenience.
18th Edition Amendment 2. Features integrated spirit level, all internal cables, terminals, busbar, labels and blanks. Modern, stylish design and profile with flexible circuit combinations. Fast, easy installation with backed-out, retained terminal screws and captive cover screws. High gloss finish matches all other BG wiring accessories.
- 40kA Type 2 SPD
- 100A Mains Switch

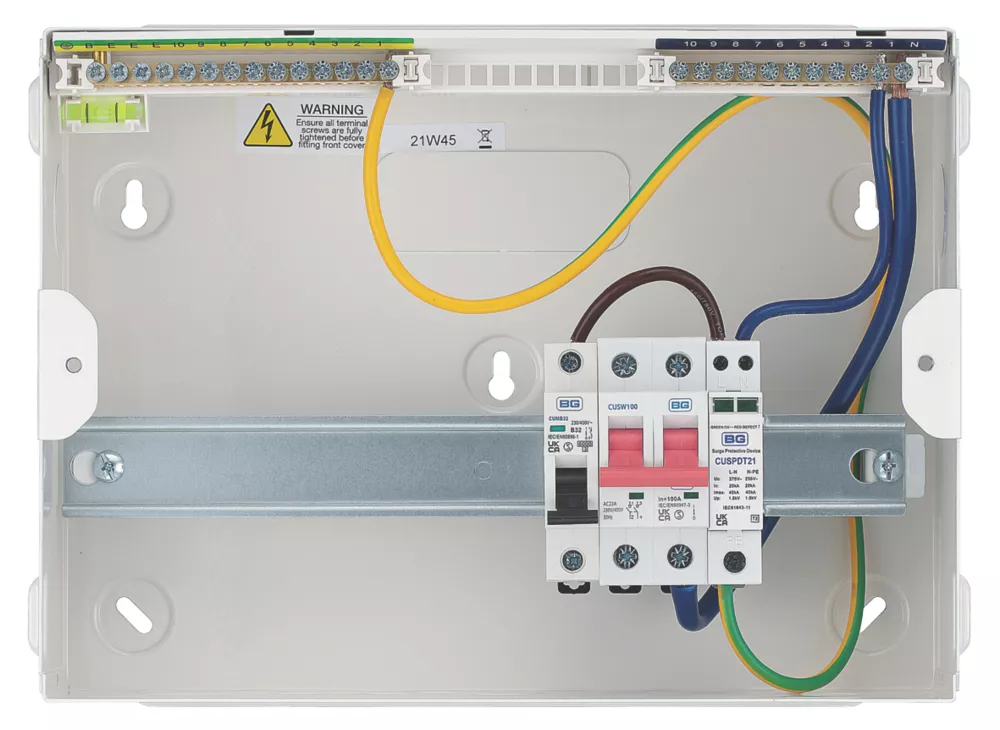

- Floating Busbar
- DIN Rail Supplied
- Top, Bottom, Side & Rear Cable Entry Points
- Integrated Spirit Level
- Backed-Out & Retained Terminal Screws

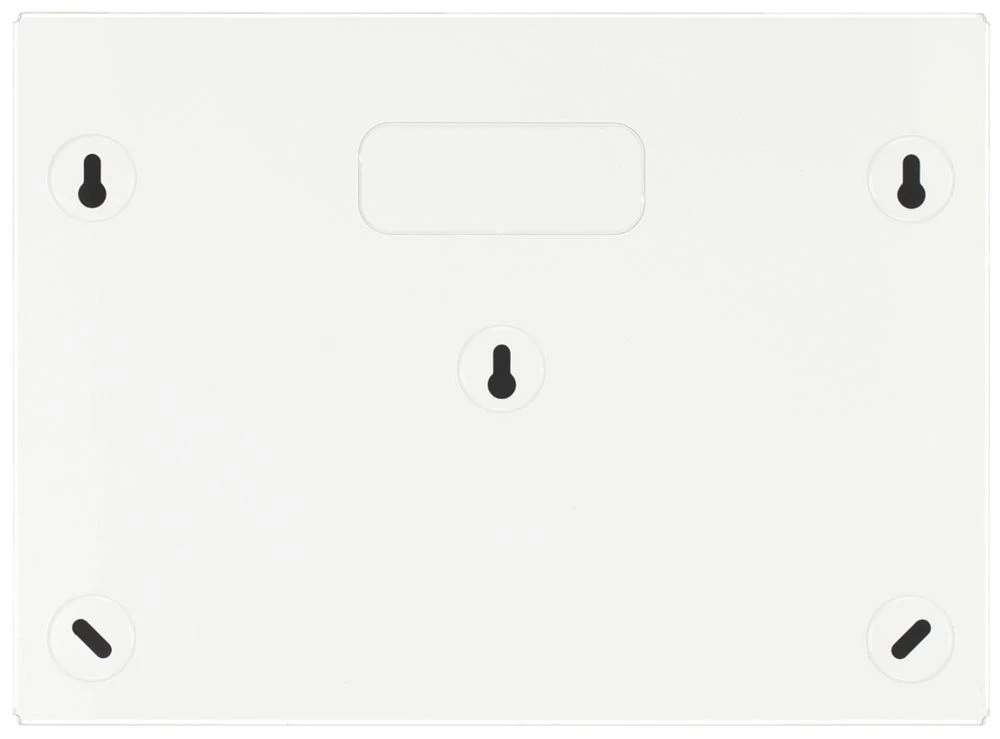

- Tripod Fixings
| Brand | British General |
|---|---|
| No. of RCBOs Supplied | 0 x RCBOs |
| Cable Entry Points | Top, Bottom, Side & Rear |
| Construction Material (Electrical) | Steel |
| Consumer Unit Type | Main Switch |
| Current Rating | 100 A |
| Fixings Supplied | Fixings Not Supplied |
| IP Rating | IP2XC |
| Integrity | Non High Integrity |
| MCBs Supplied | No MCBs Supplied |
| Manufacturer Guarantee | 10 Year Manufacturer's Guarantee (T&Cs Apply) |
| Model Name | Fortress |
| Model No | CFUSW08SPD |
| No. of Available Ways | 8 |
| No. of MCBs Supplied | 0 x MCBs |
| CSU Populated/Unpopulated | Part-Populated |
| No. of SPDs Supplied | 40kA Type 2 SPD |
| No. of RCDs Supplied | 0 x RCDs |
| Pack Size | 1 |
| Pieces in Pack/Case | 1 |
| Power Voltage Supply | 230 V |
| Product Depth | 115 mm |
| Product Height | 230 mm |
| Product Type | Main Switch SPD Consumer Unit |
| Product Width | 316 mm |
| RCBOs Supplied | No RCBOs Supplied |
| RCD Type | No RCD |
| RCDs Supplied | No RCDs Supplied |
| SPDs Supplied | SPD |
| Total No. Module Spaces When Empty | 12 |
| Total Product Weight | 3.44 kg |
| Way | 8 Way |
