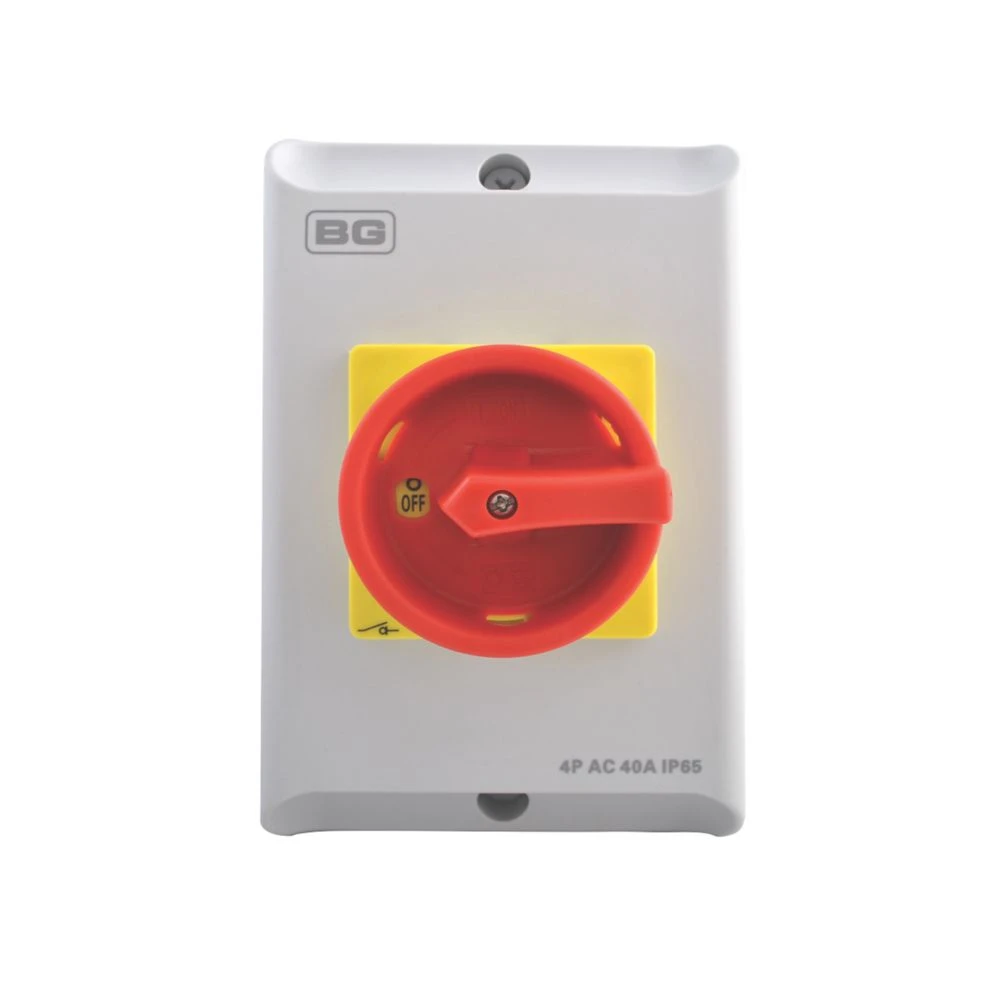

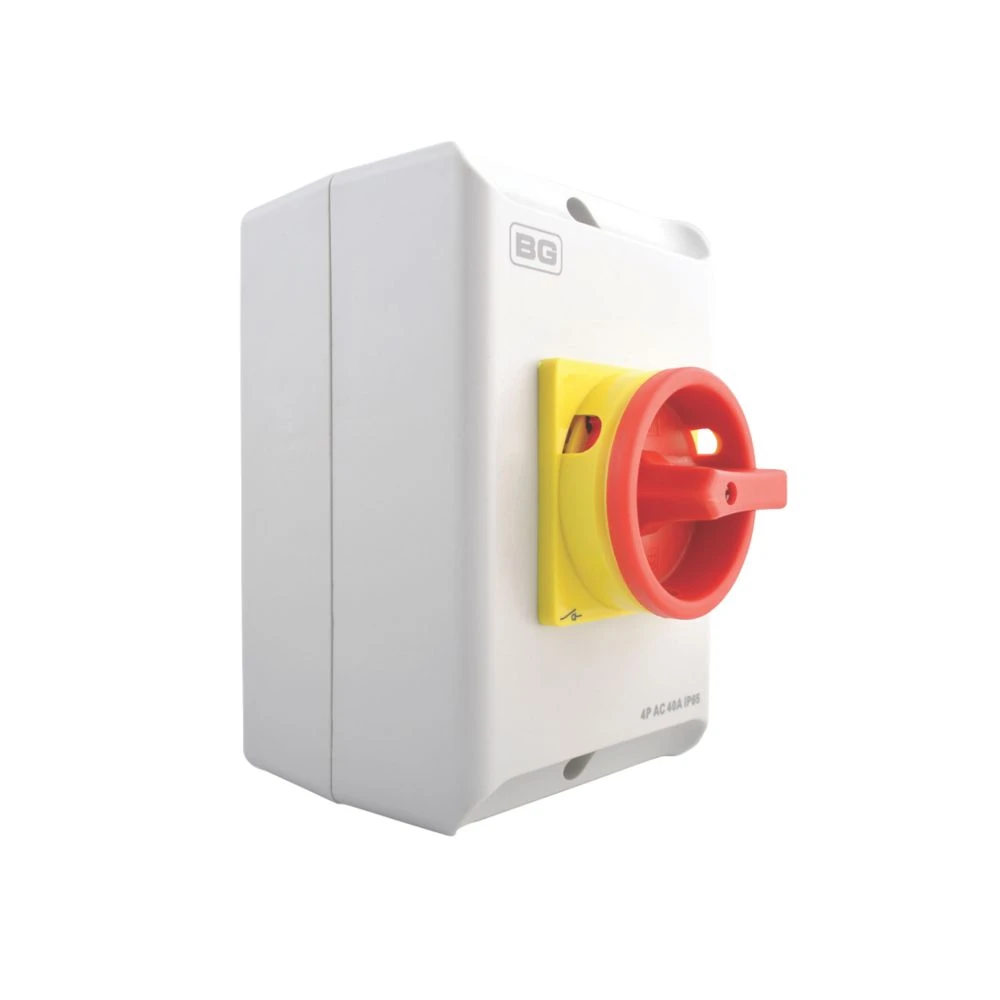

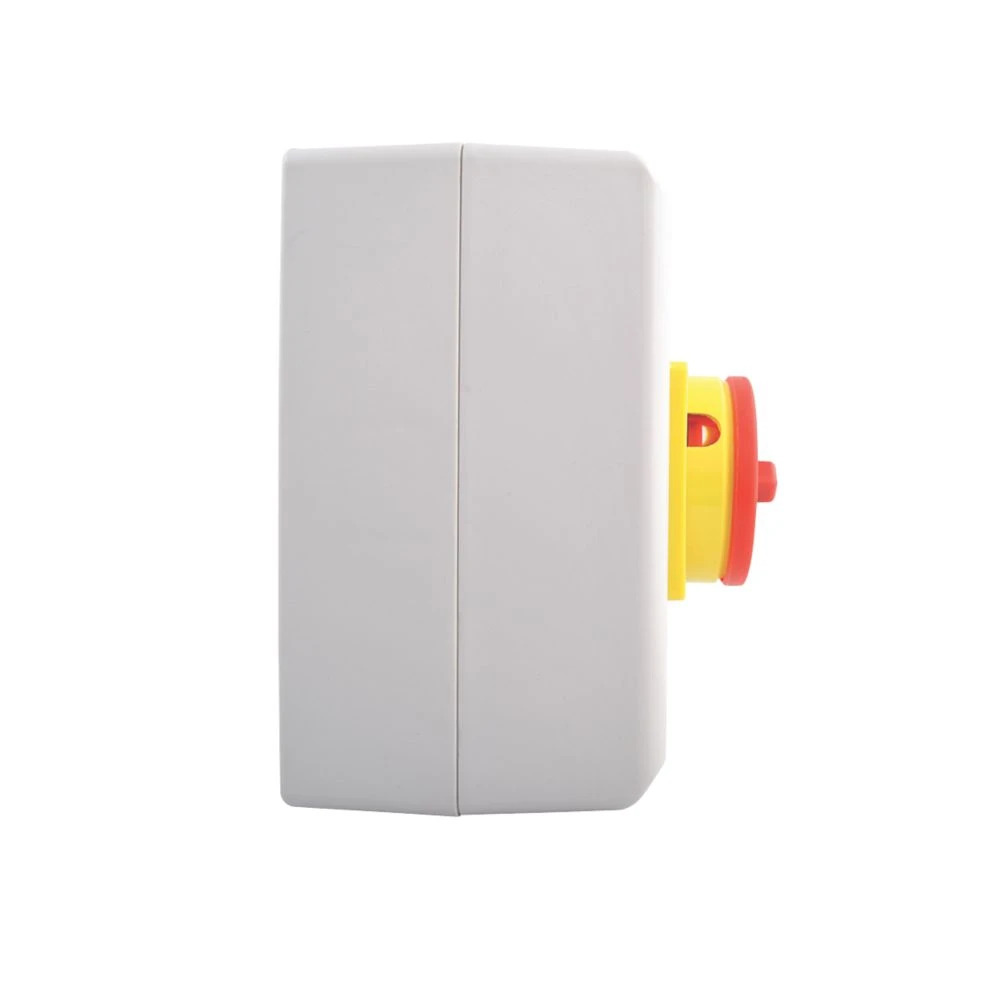

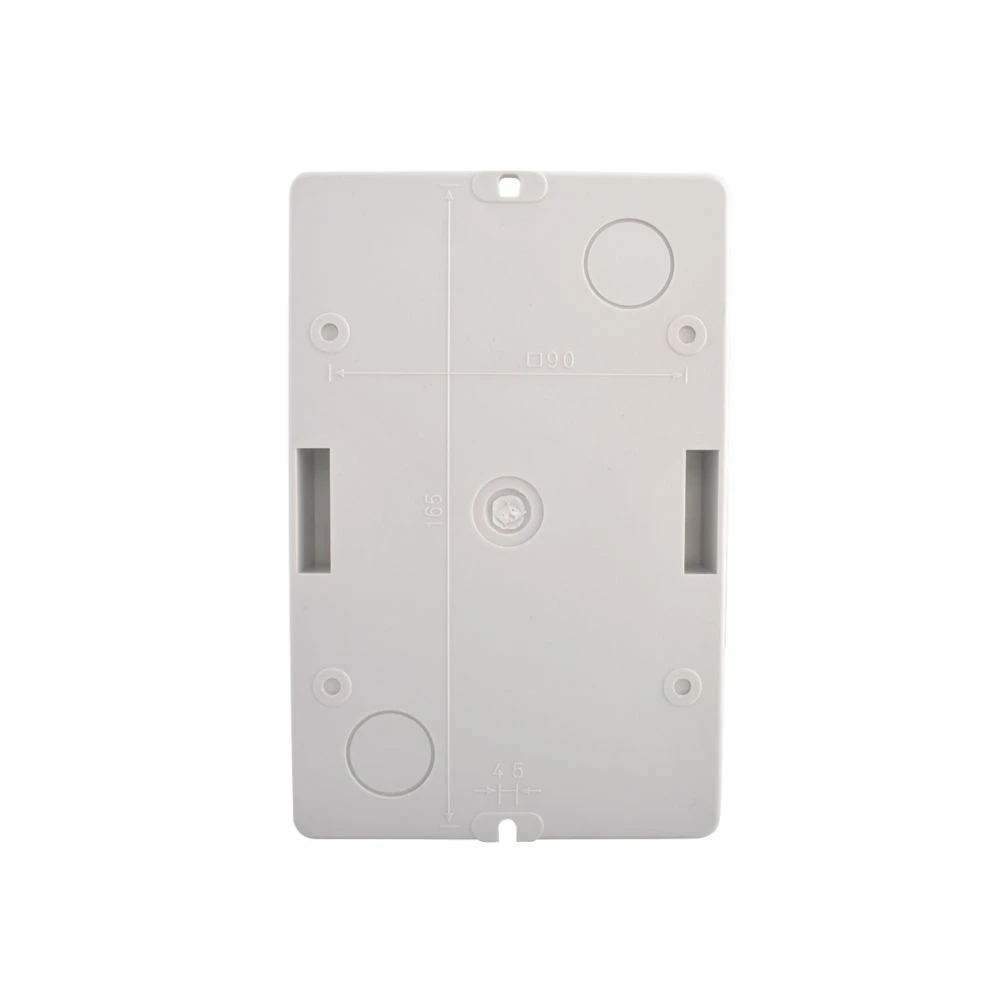

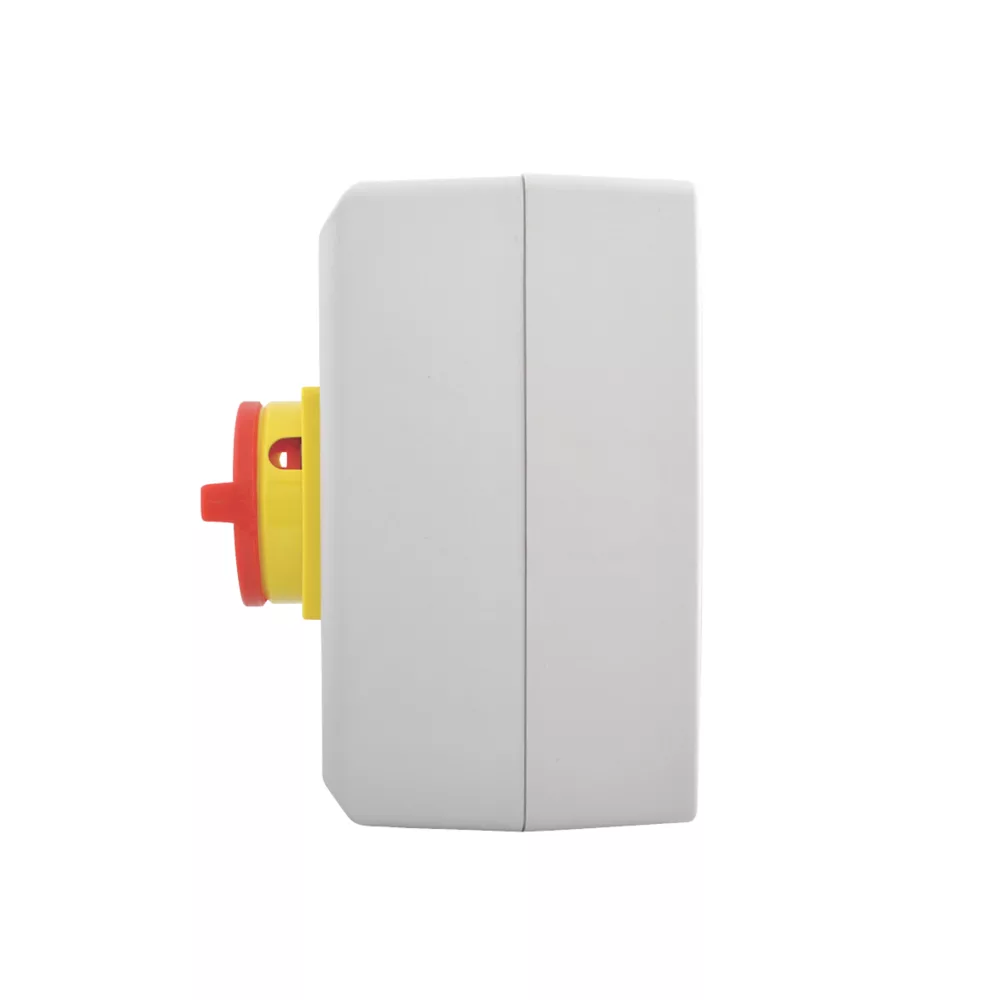

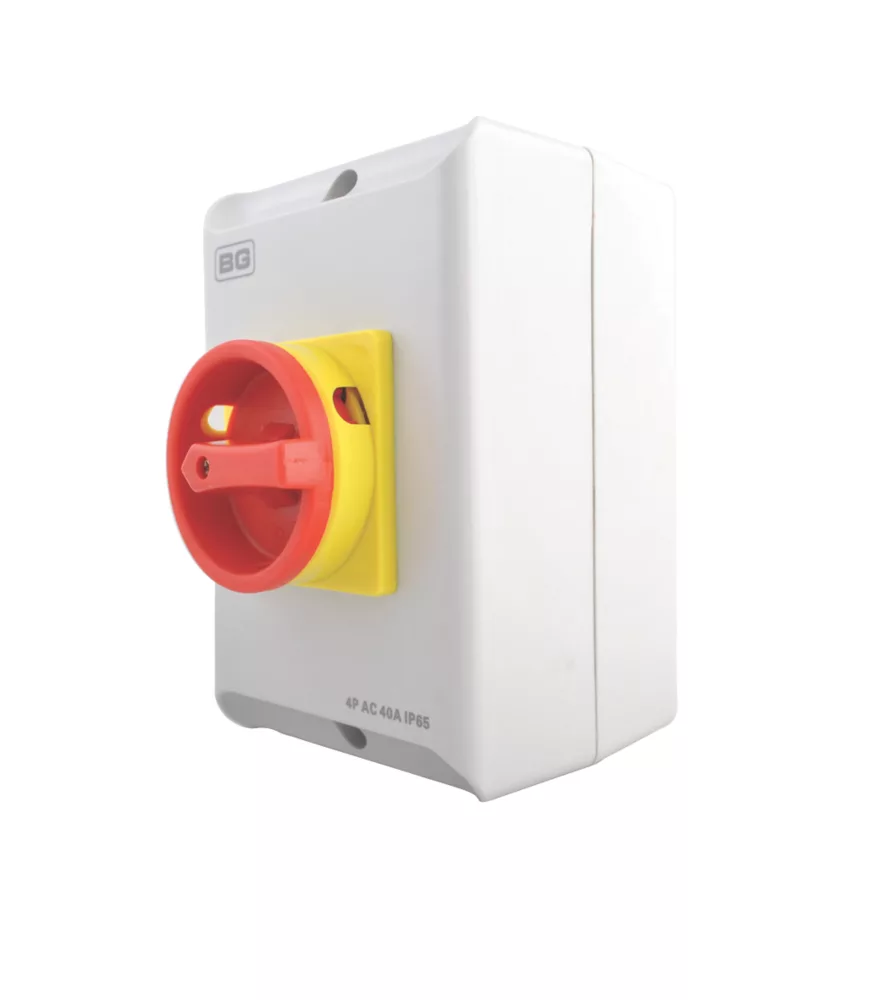

British General CPRSD440 4-Pole Rotary Isolator Switch NO
£14.09
- Shop with confidence, enjoy free returns.
- Get the Best for Less
- Shop with Confidence
- Streamlined service, designed for your convenience.
4-pole rotary isolator switch disconnector used to switch power to commercial / light industrial applications. Can be used as an emergency stop and can be locked in the off position using a padlock (not supplied). Switch is interlocked with the lid to prevent opening in the on position.
- IP65
- Fully Insulated Enclosure

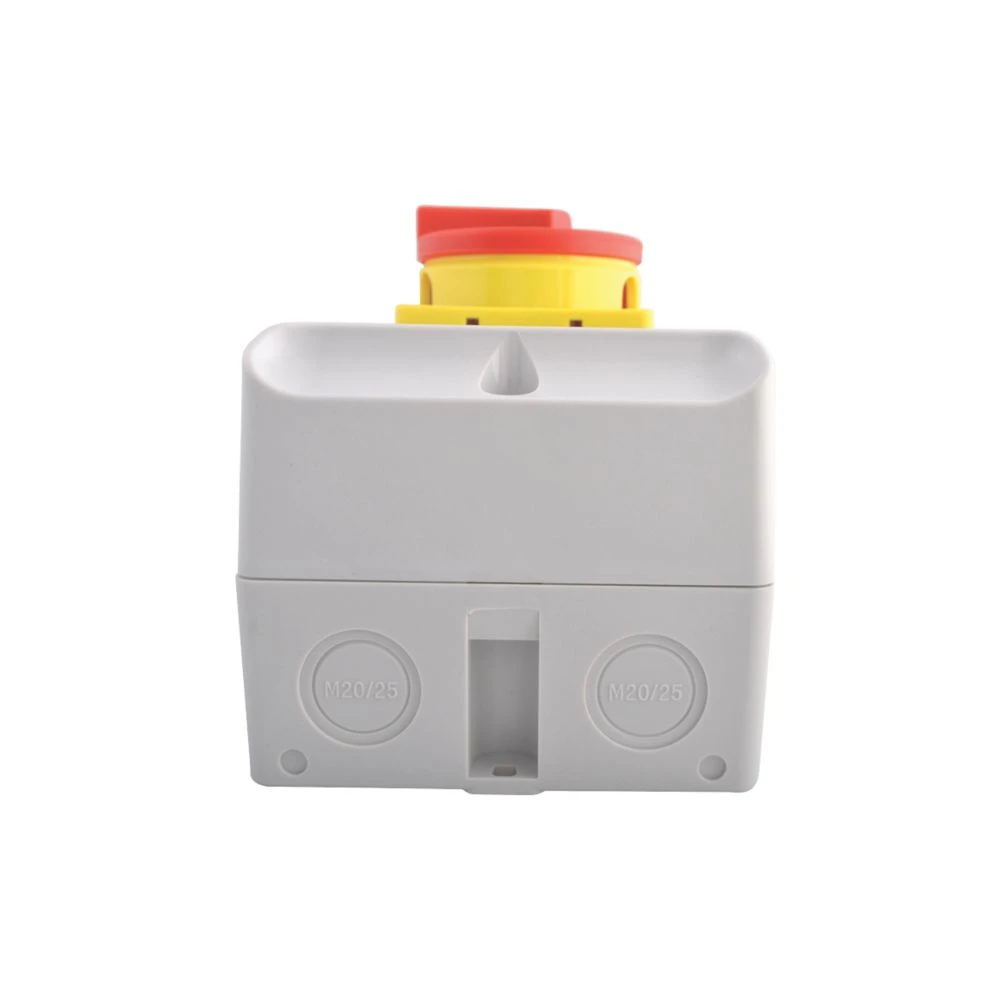

- M20/25 Knockouts
- Earth Terminals Included
- Captive Retained Cover Screws
- Can be Padlocked
| Brand | British General |
|---|---|
| Button Colour | Red |
| Casing Colour | Light Grey |
| Hertz (Hz) | 50/60 Hz |
| IK Rating | IK08 |
| IP Rating | IP65 |
| Knockout Size | M20/25 |
| Manufacturer Guarantee | 1 Year Guarantee |
| Model No | CPRSD440 |
| Number of Poles | 4-Pole |
| Pack Size | 1 |
| Pieces in Pack/Case | 1 |
| Product Depth | 135 mm |
| Product Height | 175 mm |
| Product Type | Isolator Switch |
| Product Width | 114 mm |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 690 V AC |
| Rated Operational Voltage (Ue) | 230/400 V |
| Rated Uninterrupted Current (Iu) | 40 A |
| Switch Operation | Rotary |
| Terminal Capacity | Terminals accept up to 1 x 16mm² cable |
| Utilisation Category | AC-23A |
Be the first to review “British General CPRSD440 4-Pole Rotary Isolator Switch NO”
