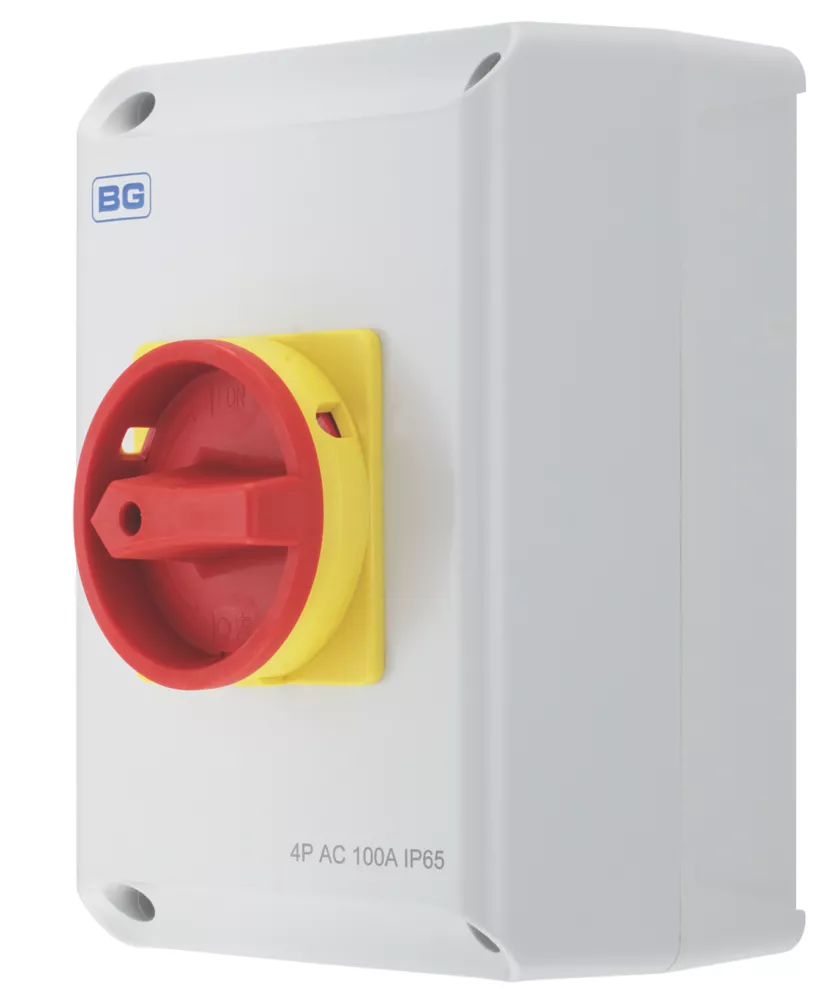

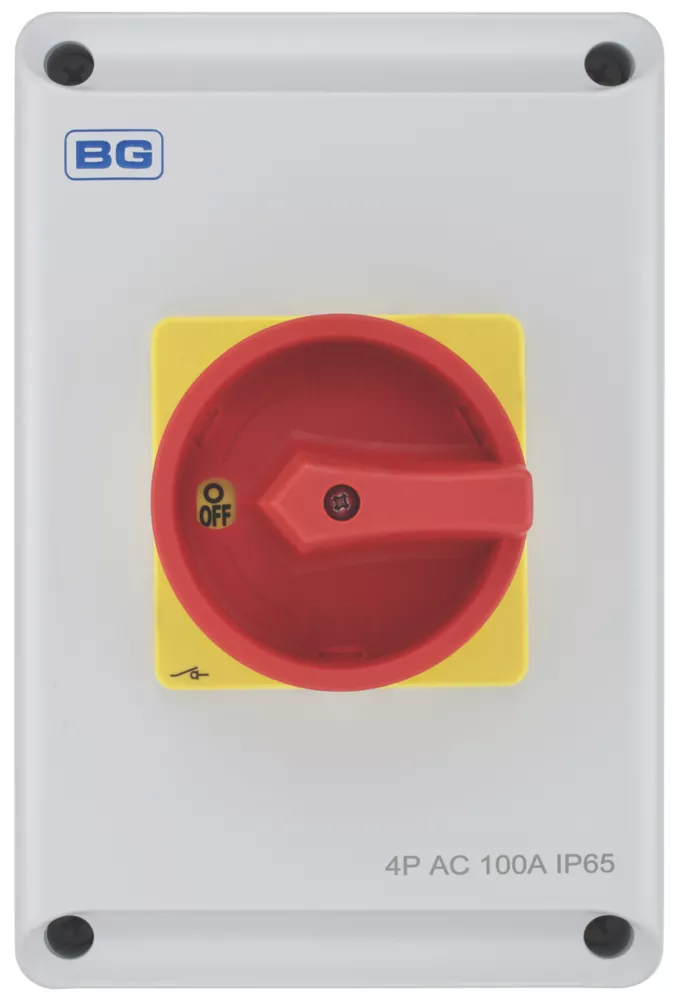

British General CPRSD4100 4-Pole Rotary Isolator NO
£67.54
- Shop with confidence, enjoy free returns.
- Get the Best for Less
- Shop with Confidence
- Streamlined service, designed for your convenience.

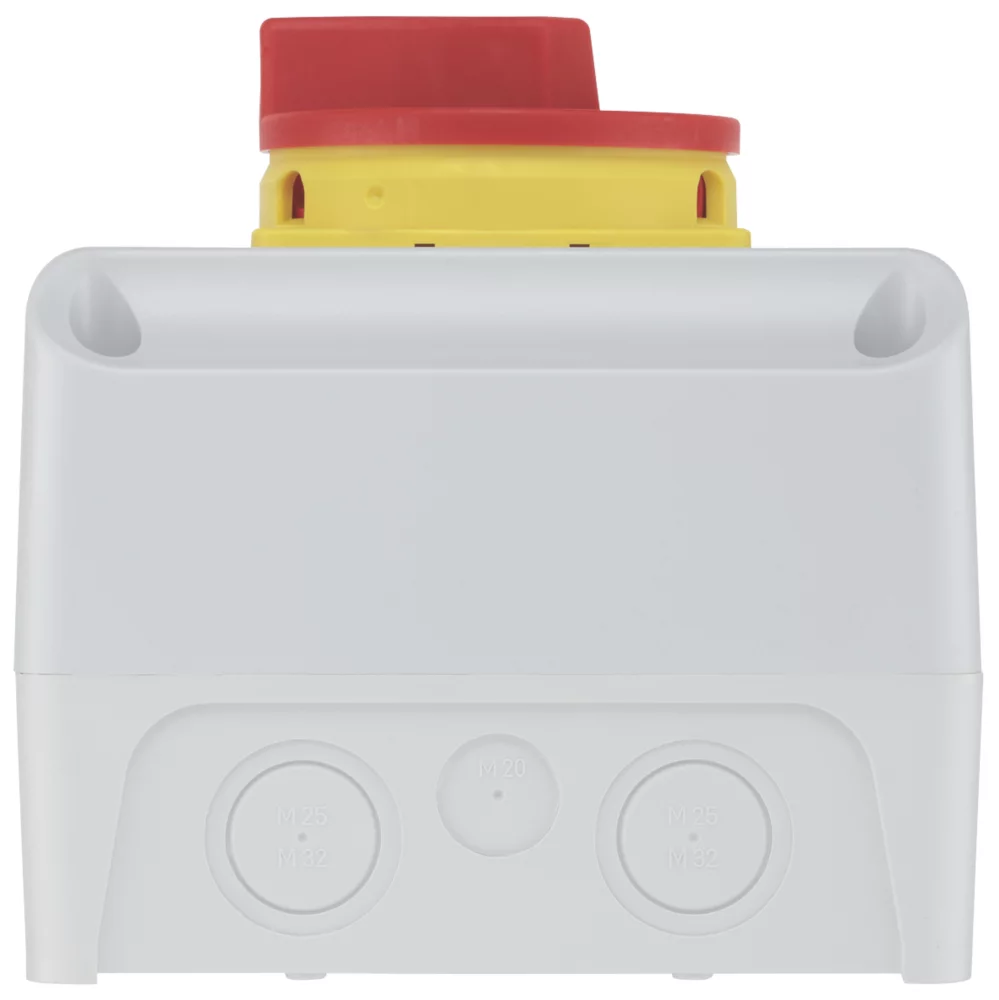

Weatherproof, plastic 100A insulated rotary isolator, offering an easy solution for isolating or switching 3-phase equipment. Features easy cable access via M20 knock-outs (top and bottom), switch interlocking with lid to prevent opening in ‘on’ position and red and yellow handle with captive cover screws, lockable by padlock. Earth terminals included.
- IP65
- Fully Insulated Enclosure
- M20 Knockouts
| Brand | British General |
|---|---|
| Button Colour | Red |
| Casing Colour | Light Grey |
| Hertz (Hz) | 50 Hz |
| IK Rating | IK08 |
| IP Rating | IP65 |
| Knockout Size | M20 |
| Manufacturer Guarantee | 1 Year Guarantee |
| Model No | CPRSD4100 |
| Number of Poles | 4-Pole |
| Pack Size | 1 |
| Pieces in Pack/Case | 1 |
| Product Depth | 165 mm |
| Product Height | 240 mm |
| Product Type | Isolator |
| Product Width | 165 mm |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 690 V AC |
| Rated Operational Voltage (Ue) | 230/400 V |
| Rated Uninterrupted Current (Iu) | 100 A |
| Switch Operation | Rotary |
| Terminal Capacity | Terminals accept up to 16mm² cable |
| Utilisation Category | AC-23A |
